Vacuum Oven

27L – 512L 200°C Vacuum Oven with Digital Temperature Controller & inner Chamber

TMAX-BE-ZK is a middle size vacuum oven with max working temperature 200°C and 27 – 512 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

Chamber and Door

• The chamber is structured with stainless steel and welded to bracing pieces.
• A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
• The double layers observation window consists of 1/2″ tempered glass and transparent polycarbonate shield.
• Two stainless steel shelves are included to facilitate processing efficiency.

Temperature Controller

• Single point temperature setting
• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

NST 25L 250°C Vacuum Oven (12x12x11″ ) with Digital Temperature Controller & Inner Chamber – DZF-6020

TMAX-DZF-6020 is a middle size vacuum oven with max working temperature 250°C and 25 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

Temperature Controller

• Single point temperature setting
• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-2.5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

215L 250°C Vacuum Oven (22x25x24″ ) with Digital Temperature Controller & Inner Chamber – DZF-6210

TMAX-DZF-6210 is a middle size vacuum oven with max working temperature 250°C and 215 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

Temperature Controller

• Single point temperature setting
• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-2.5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

252L 250°C Vacuum Oven (28x24x24″ ) with Digital Temperature Controller & Inner Chamber – DZF-6250

TMAX-DZF-6250 is a middle size vacuum oven with max working temperature 250°C and 252 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

Temperature Controller

• Single point temperature setting
• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-2.5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

Features:

• Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
• 52 L Middle size vacuum chamber.
• 3″ (7.6 cm) glass wool insulation prevents heat loss from working chamber.
• Silicone door gasket and positive latch door maintain seal at all vacuum levels.
• Exclusive polycarbonate safety shield protects door glass.
• Vacuum fittings require .25″ (6.35 mm) I.D. tubing.
• Easy-to-clean #304 stainless steel chamber interior.
• Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
• Two removable stacking aluminum shelves included.
• CE certificated

Chamber and Door

• The chamber is structured with stainless steel and welded to bracing pieces.
• The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 11″, 25 Liter)
• A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
• The double layers observation window consists of 1/2″ tempered glass and transparent polycarbonate shield.
• Two stainless steel shelves are included to facilitate processing efficiency.

Temperature Controller

• Single point temperature setting
• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

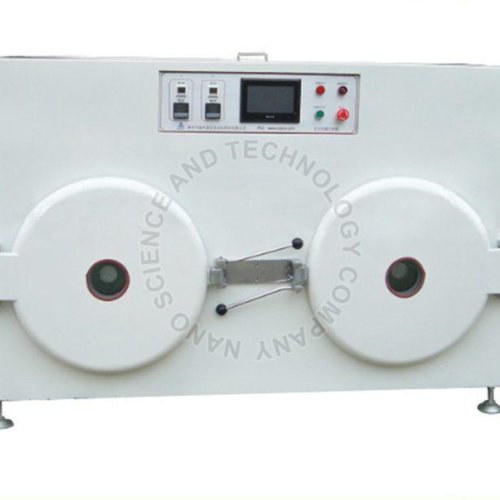

Electrical Round Oven For Li-Ion Battery Electrode Drying

• The Round Vacuum Oven is dedicated to the Li-ion battery electrode drying process for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 380 kg.
• The TMAX-JK-ZKHX-AR2 Round vacuum oven is equipped with two drums, you can also choose single drum, three drum or four drum according the battery production line output.

Air Supply

• Vacuum :-0.095~-0.1Mpa
• Compressed air :0.4~0.5Mpa
• Dry air :0.1~0.2Mpa

53L 250°C Vacuum Oven (16x13x14″ ) with Digital Temperature Controller & inner Chamber

TMAX-KZ50L is a middle size vacuum oven with max working temperature 250°C and 53 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

Chamber and Door

• The chamber is structured with stainless steel and welded to bracing pieces.
• The inner Chamber size: 415 mm x 345 mm x 375 mm (16 x 13 x 14″, 53 Liter)
• A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
• The double layers observation window consists of 1/2″ tempered glass and transparent polycarbonate shield.
• Two stainless steel shelves are included to facilitate processing efficiency.

Temperature Controller

• Single point temperature setting
• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

The NST-SBVO-03 vacuum oven is specially designed for lithium battery industry production process of vacuum drying equipment, the temperature, vacuum degree, the size of the studio and the barrier height is maximally meet the needs of the lithium battery industry.

This vacuum oven is manual vacuum and air control, it is mainly used for Lithium battery materials and electrode sheet vacuum baking.

Structure

• Three working chamber with one vacuum hole, controlled by hand separately
• Open door mode : Three single door, with square observe window
• With Air switch, over current protection, Over temperature protection.

NST 150°C Larger Capacity (480L) Vacuum Drying Oven with Tri-level Shelf Heating Modules

NST-ZD3A is a floor stand vacuum drying/degassing/bake-out oven with large capacity. It is manufactured with carefully selected UL/CSA/MET electrical components ( >24V DC/AC) which ensure the outstanding.

150°C Larger Capacity (480L) Vacuum Drying Oven with Tri-level Shelf Heating Modules

TMAX-ZD3A is a floor stand vacuum drying/degassing/bake-out oven with large capacity. It is manufactured with carefully selected UL/CSA/MET electrical components ( >24V DC/AC) which ensure the outstanding system performance and quality.

Advanced Features:

• Tri-level individual shelf heating modules provide ideal temperature uniformity, heat-up efficiency, and spacing for vacuum drying, degassing and bake-out applications.
• PLC control enables automatic cycling conditions such as vacuuming, backfill with an inert gas, heating to the set temp., dwell, timing and pressure control.
• Local temperature measuring for each heated shelf. The actual temperature of each shelf can be seen separately on the temperature controller.

Structure

• Total capacity: 480 liters (160 liters per level)
• Inner Chamber size: W660mm x D750mm x H330mm per level
• A good vacuum seal is achieved by silicone door gasket and positive latch door
• Three observation windows (15mm thick temper glass), one for each level
• High-quality glass wool insulation prevents heat loss and maintains a relatively low surface temp. < 40°C during the work
• Interior material: Stainless Steel 304 (3mm thick)
• Exterior material: Cold rolled steel plate (2mm thick)

Temperature Controller

• PID precise temperature controls with built-in over-temperature protection
• Temperature uniformity: +/-2°C @ 85°C
• Temperature Stability: +/-1°C of the setpoint

Gas Inlet/Vacuum Port

• Features 1/4″ tube fitting for chamber purging with inert gas
• Vacuum Port: KF-25

NST 27L512L Lithium Battery Electrode Vacuum Degassing Baking Oven

30-920L 300°C Max. Convection Oven with Programmable Temperature Controller

NST-DSP is a 300°C Max. Ovens combine forced-air circulation and programmable temperature controller to achieve dependable, uniform furnace for a variety of laboratory applications like drying, storing, annealing. It is an ideal heating equipment for material R&D laboratories.

BATTERY 50L 200C VACUUM DRY OVEN (16.3 X 13.5 X 14.5″ ) WITH DIGITAL TEMPERATURE CONTROLLER

Features:

• Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
• 52 L Middle size vacuum chamber.
• 3″ (7.6 cm) glass wool insulation prevents heat loss from working chamber.
• Silicone door gasket and positive latch door maintain seal at all vacuum levels.
• Exclusive polycarbonate safety shield protects door glass.
• Vacuum fittings require .25″ (6.35 mm) I.D. tubing.
• Easy-to-clean #304 stainless steel chamber interior.
• Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
• Two removable stacking aluminum shelves included.
• CE certificated

THE ROUND VACUUM OVEN is dedicated to the Li-ion battery electrode drying process for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 380 kg.

The NST-JK-ZKHX-AR4 Round vacuum oven is equipped with four drums, you can also choose single drum, two drum according the battery production line output.

Air Supply

• Vacuum :-0.095~-0.1Mpa
• Compressed air :0.4~0.5Mpa
• Dry air :0.1~0.2Mpa

NST 252L 250°C Vacuum Oven (28x24x24″ ) with Digital Temperature Controller & Inner Chamber – DZF-6250

NST-DZF-6250 is a middle size vacuum oven with max working temperature 250°C and 252 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

Temperature Controller

Single point temperature setting

• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-2.5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

NST-100-400°C CONVECTION DRYING OVEN WITH DIGITAL TEMPERATURE CONTROLLER

Structure

• Use mirror stainless steel tank, four and a half circular arc transition, clapboard stents can free loading and unloading, easy to clean.
• Adopt PID fuzzy logic controller, quickly reached set Tem, more accurate and stable.
• Configuration independent limit temperature alarm system,exceed limit temperature automatically interrupted, security.
• Diameter of 50 mm hole is on the box left, easy to operation and measuring temperature.

1 The NST-DZF-6210 Vacuum Degassing Oven is a larger volume designed vacuum oven for industrial use. It has a 200 litres about 7.5 cubic feet volume.

2 The NST-DZF-6210 Vacuum Degassing Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying for production line.

3 Use Vacuum Oven for material heating drying under vacuum states has advantages:

1 Can reduce the drying temperature

2 Avoid some objects heating to oxidation

3 Avoid heating air to kill living cells

4 No dust damage

NST 25L 200C Vacuum Oven (12x12x11″ ) with Digital Temperature Controller – JK-DZF-6020

NST-JK-DZF-6020 is a middle size vacuum oven with max working temperature 200°C and 25 Liter capacity. The oven adopts heat radiant wall system providing optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

Chamber and Door

• The chamber is structured with stainless steel and welded to bracing pieces.
• The inner Chamber size: 300 mm x 300 mm x 275 mm (12 x 12 x 11″, 25 Liter)
• A good vacuum sealing is achieved by the silicone gasket and the positive latch door.
• The double layers observation window consists of 1/2″ tempered glass and transparent polycarbonate shield.
• Two stainless steel shelves are included to facilitate processing efficiency.

Temperature Controller

• Single point temperature setting
• Built-in over-temperature protection
• PID precise temperature control
• Temperature control accuracy: +/-0.1°C
• Temperature uniformity: +/-5°C @ 100°C, 25″ Hg at center 6″x6″ area only

Attention

• It’s normal that the SS chamber wall will slightly deform and loose its shine during high-temperature operation. However, this would not affect any functionality.
• Please do not place the sample on the chamber bottom directly.

NST-JK-ZKHX-AR4 is a floor stand vacuum drying/degassing/bake-out oven with large capacity. It is manufactured with carefully selected UL/CSA/MET electrical components ( >24V DC/AC) which ensure the outstanding system performance and quality.
